USB Audio Interfaces With Good Frequency Response

For a measurement system I needed an USB audio interface with a good frequency response (at least up to 40 kHz).

After doing a first research on this topic on the internet I realized that this won’t be very easy as most of the manufacturers just don’t put any useful info regarding frequency response on their webpage. And if you asked them they, often just don’t know it themselves.

So I ordered these interfaces for testing:

  • M-Audio FastTrack Pro (about €160)
  • TASCAM US-122 MKII (about €130)
  • E-MU 0202 USB (about €100)
  • ESI Dr. DAC nano (about €70)

Here are the results of the individual audio interfaces.

M-Audio FastTrack Pro

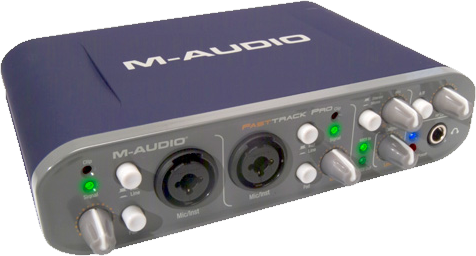

M-Audio FastTrack Pro

The problem with this interface was that it still uses USB 1.1 and therefore a sampling rate of 96 kHz is only possible in one direction (in or out). That would be OK for me as I only needed to use it for output, but whatever I tried I did not get the interface to work with a sampling rate of 96 kHz – it only accepted 44.1 kHz. As a result the upper end of the frequency response is around only 20 kHz. So I cannot use this interface for my purpose.

TASCAM US-122 MKII

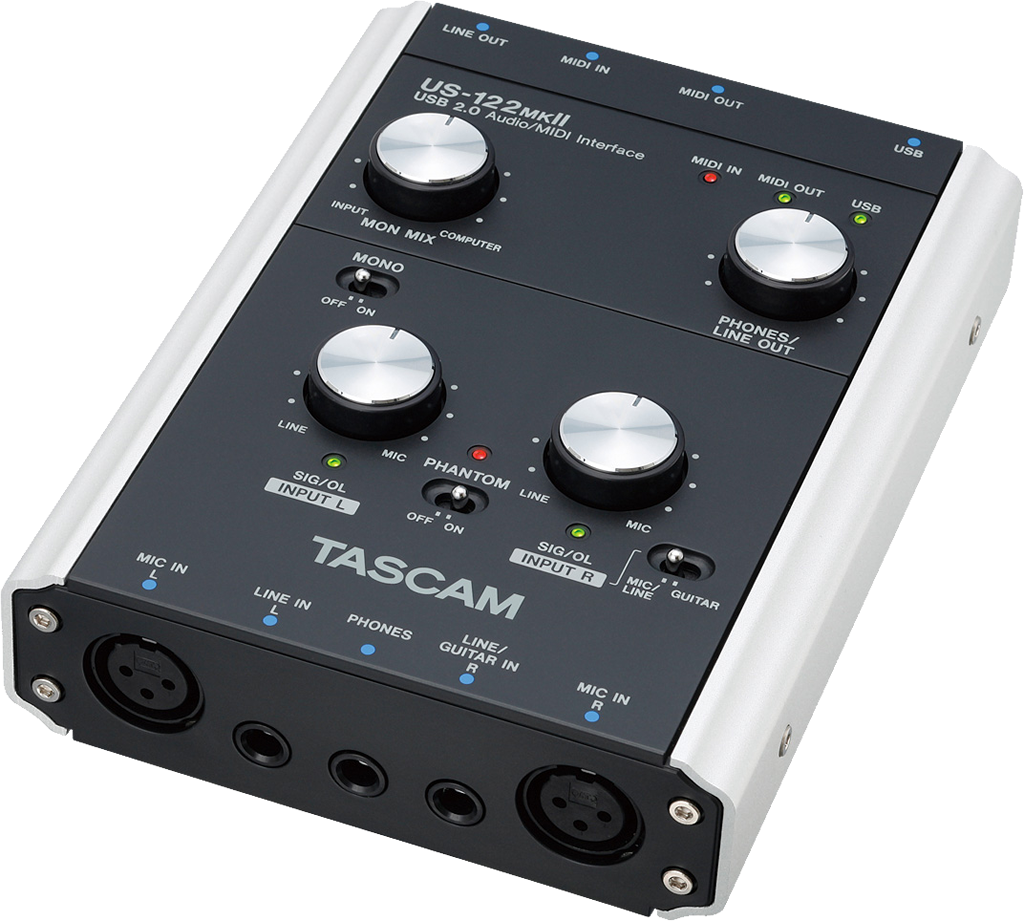

TASCAM US-122 MKII

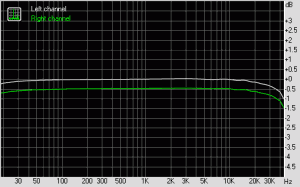

This was the best interface in respect of frequency response in my test: in contrast to the FastTrack Pro it uses USB 2.0 and therefore can easily handle 96 kHz sampling rate in both directions simultaneously. The frequency response is also very good (20 Hz to 40 kHz with +/-1 dB) as the following diagram of the RightMark Audio Analyzer shows:Frequency Response of TASCAM US-122-MKII

E-MU 0202 USB

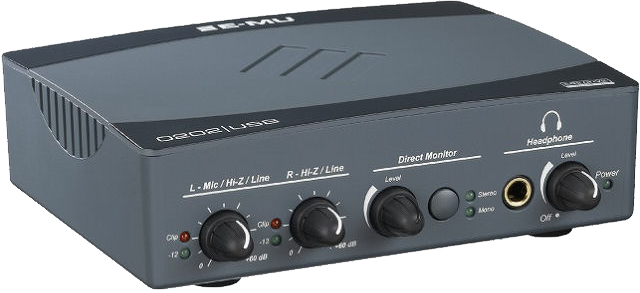

E-MU 0202 USB

Whatever I tried, but I did not get this interface to work correctly: my Windows XP computer crashed several times while trying to get the drivers to work and I really don’t want to talk about the Windows 7 Beta Drivers at all! I cannot understand why a company like Creative (E-MU was acquired by Creative in 1993) does not have official (not beta!) and working Windows 7 drivers about 2 years after this operating system was released.

ESI Dr. DAC nano

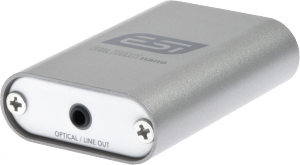

ESI Dr. DAC nano

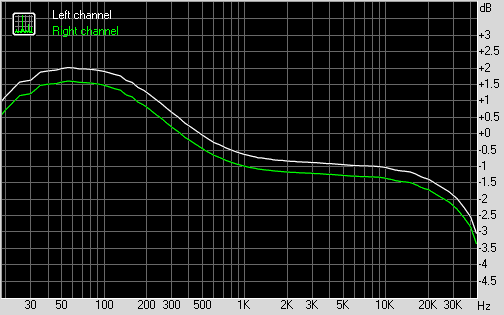

This was the cheapest interface in my small test and it also does not have many features: it really only outputs stereo audio – over S/PDIF or line out –, but this works just fine at 96 kHz sampling rate. The frequency response is not what I would call “neutral” (it looks like as the manufacturer want to boost the bass a little bit with intent), but at least also the higher frequencies are sent with not too high absorbability (20 Hz to 40 kHz with +2/-3 dB). For this test I used the TASCAM US-122 MKII interface as input for the RightMark Audio Analyzer:Frequency Response of ESI Dr. DAC nano

As a summary I recommend the ESI Dr. DAC nano interface if only stereo output at 96 kHz is necessary and +2/-3 dB in the 20 Hz to 40 kHz frequency range are OK. Otherwise the best one in respect of frequency response of the tested devices definitely is the TASCAM US-122 MKII.
